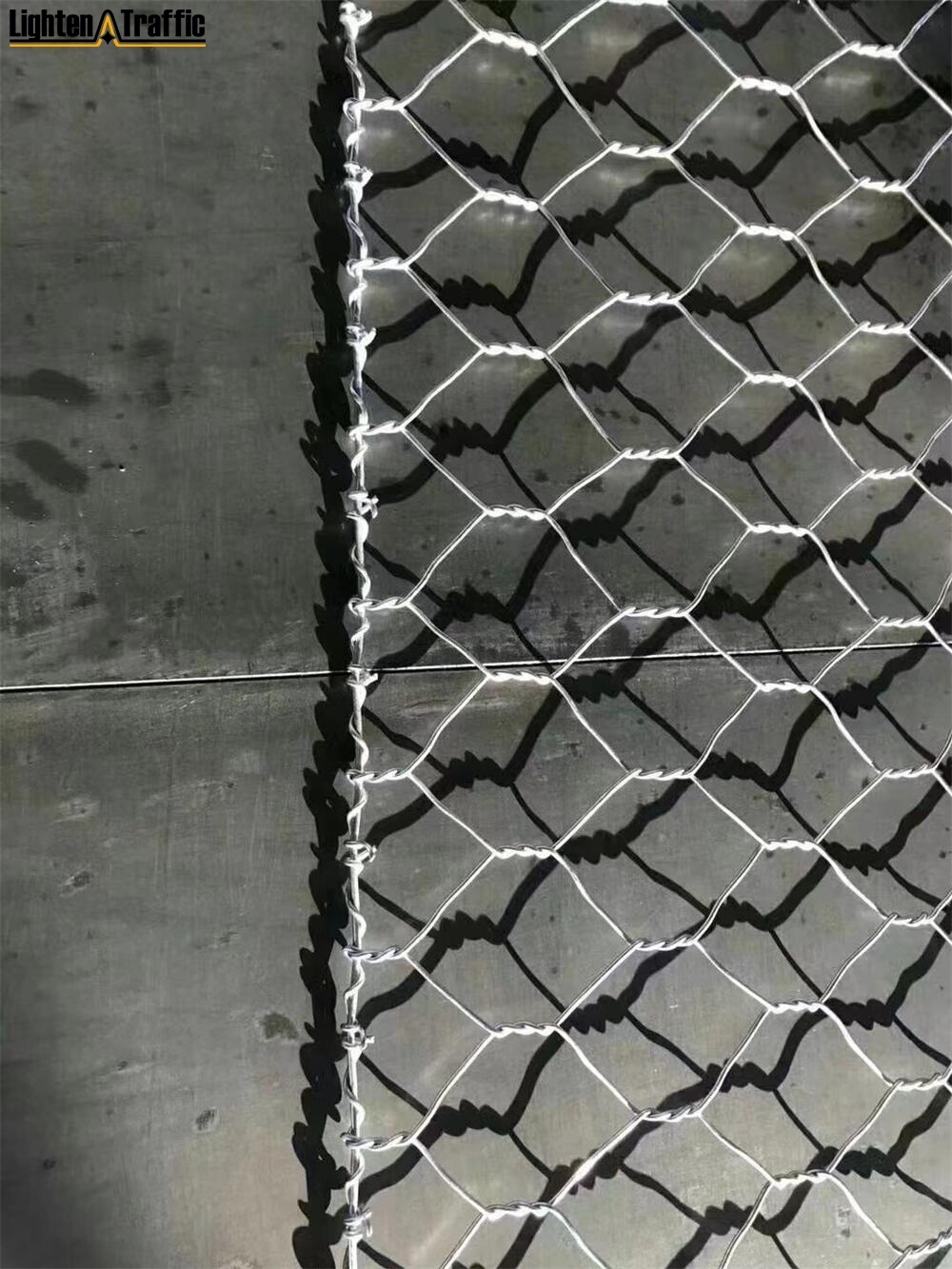

| The gabion is mechanically woven from high corrosion resistant, high strength, low carbon steel wire or PVC coated steel wire. According to ASTM A 975 and EN10223 standards, the diameter of the low carbon steel wire used is based on engineering design and Different from the requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the weight of the metal plating layer is generally higher than 245g/m2. The diameter of the edge line of the gabion mesh is generally larger than the diameter of the wire. The length of the double-wire stranded portion shall not be less than 50 mm to ensure that the metal plating and the PVC coating of the stranded steel wire are not damaged. We commonly Provide 2*1*1 and 4*1*1 Galvanized(40-275g/M2) Gabions with Space of 8*10,10*12,12*15cm to Our Clients from Philippine and Other Southeastern Asian Countries. |
| ●Product use: The structure can be used for slope support, foundation support, mountain, slope planting (greening), railway highway isolation, it can also be made into cages, net mats, used for rivers, Anti-scour protection for dams and seawalls, and cages for reservoirs and river closures. |
| ● Control and guide rivers & floods The serious disaster of the river is that the water flows to wash the river bank and destroy it. The flooding caused lossing of life and property. Therefore, in dealing with the above problems, the application of the ecological grid structure is a good solution, which can provide good protection for the river bank. |
| ●Channel Canal River Bed The construction of the channel involves the stability of the slope and riverbed. Therefore, the choice of ecological grid structure is the main method used in many natural river reconstruction and artificial channel excavation in the past 100 years. It can effectively protect the river bank or the riverbed. Gabion also has the function of controlling the flow of water and preventing water loss, especially in environmental protection and water quality maintenance. |
| ● Revetment protection The application of the ecological grid structure named Gabion succeeded working at the protection of the river bank and its slope protection. It fully exploits the advantages of the ecological grid and achieves the desired effect that other methods cannot achieve. |
| (1) Economy. Simply put the stone in the gabion and seal it. |
|---|
| (2) Simple construction and no special technology. |
| (3) Strong resistance to natural damage and corrosion and weathering. |
| (4) It can withstand a wide range of deformations without still collapsing. |
| (5) The silt between the cracks of the cage stone is conducive to plant production and can be integrated with the surrounding natural environment. |
| (6) It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillsides and beaches. |
| (7) Saving transportation costs. It can be folded for transport and assembled on the job site. |
| (8) Good flexibility: no structural joints, the overall structure is malleable. |
| (9) Corrosion resistance: galvanized materials are not afraid of sea water. |
| The Gabion is mainly used for the development and treatment of river courses. It involves the construction process of laying the cushions in sections. The Gabions are used in the maintenance of the adjacent environmental water source. It has the function of controlling water flow, preventing water loss, and protecting and managing the ecological environment.There are four main materials for the stone cage net: |
|---|

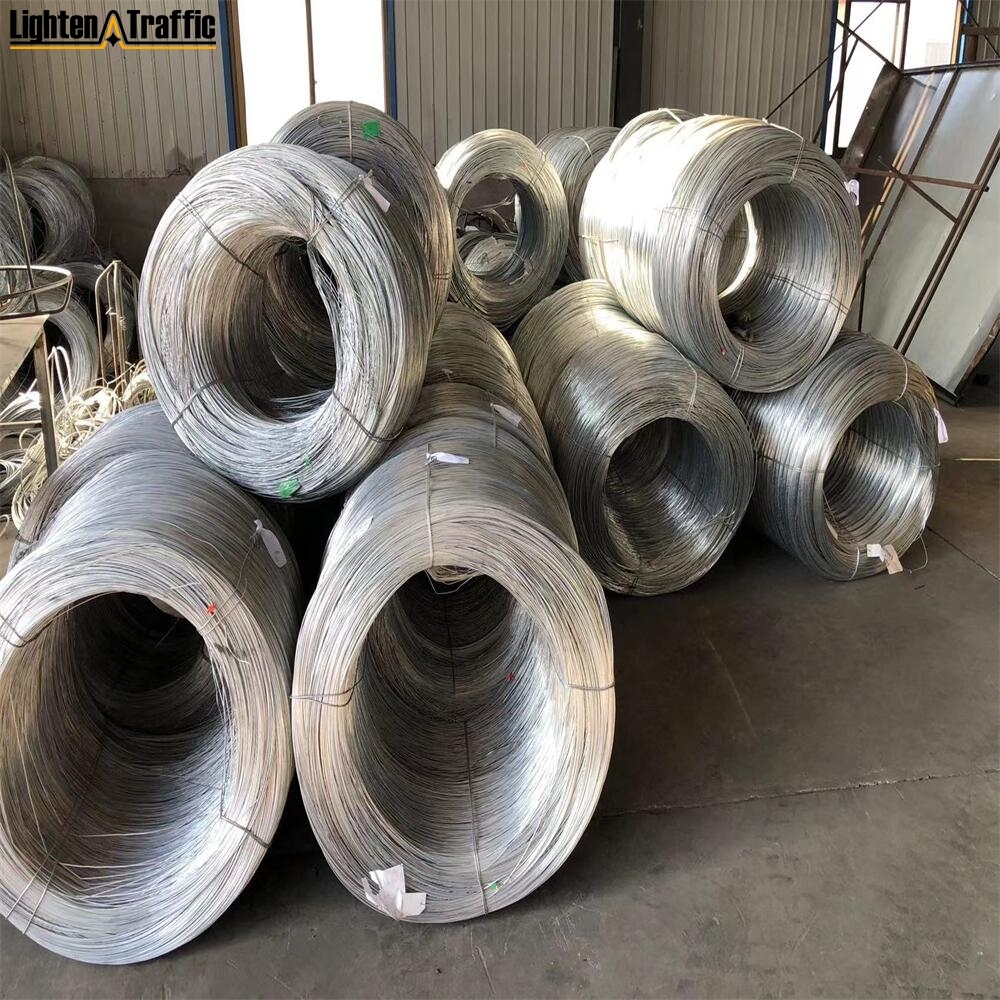

| (1) Galvanized steel wire: high-quality low-carbon steel wire, the diameter of steel wire is 2.0MM-4.0MM, the tensile strength of steel wire is not less than 380Mpa, the surface of steel wire is protected by hot-dip galvanizing, and the thickness of galvanized protective layer is according to customer requirements. Produced, the amount of galvanizing can reach 300g/m2. |
| (2) Zinc-5% aluminum-mixed rare earth alloy steel wire: (also known as Galvan) steel wire, which is a new material emerging in recent years, with corrosion resistance more than three times that of traditional pure galvanizing, steel wire The diameter can reach 2.0MM-4.0MM, and the tensile strength of the steel wire is not less than 380Mpa. |
| (3) Galvanized steel wire withplastic coated: high-quality low-carbon steel wire, coated with a layer of PVC or PE on the surface of the steel wire, and then woven into various specifications of the Gabions. This layer of protection will greatly increase protection in highly polluted environments and will allow it to blend with the surrounding environment through different color choices. |
| (4) Zinc-5% aluminum-mixed rare earth alloy steel wire with plastic coating: a layer of PVC or PE protective layer is coated on the surface of zinc-5% aluminum-mixed rare earth alloy steel wire, and then woven into various specifications of stone cage net. This layer of protection will greatly increase protection in highly polluted environments and will allow it to blend with the surrounding environment through different color choices. |

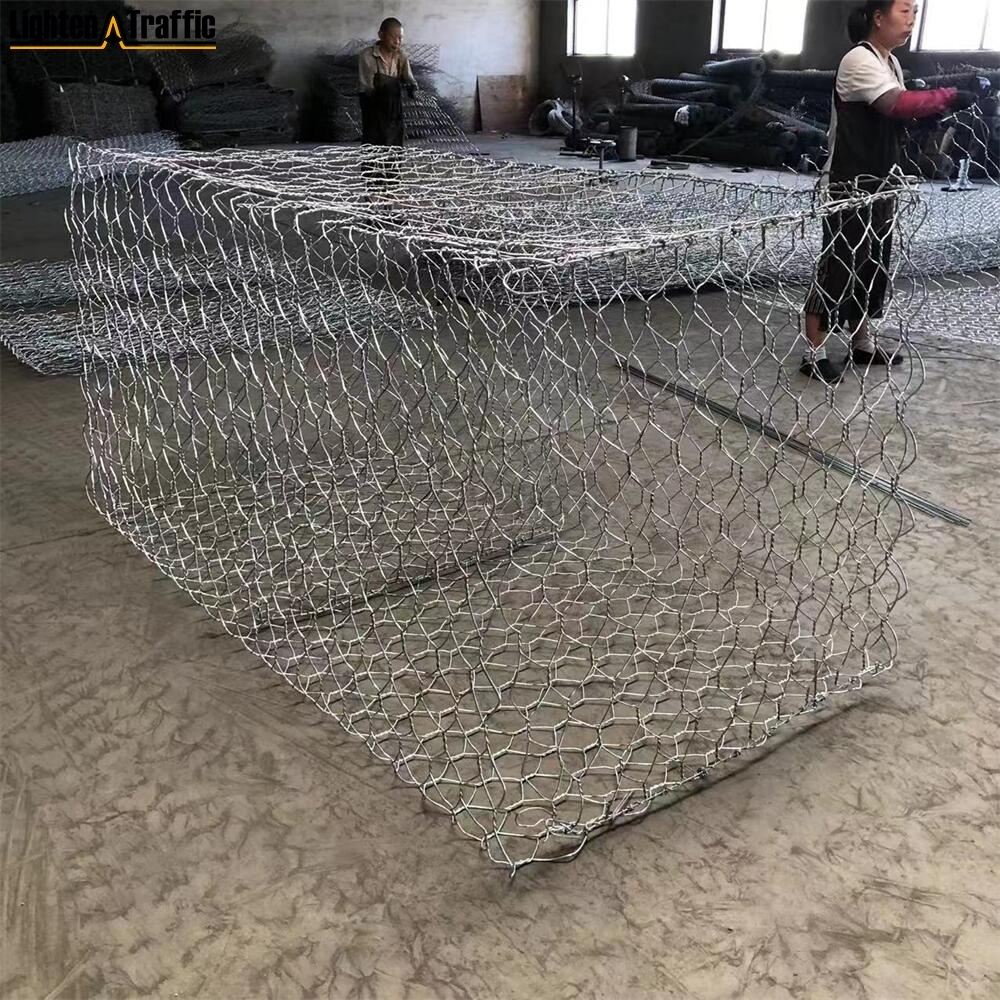

| 1. The Gabion is produced in one molding. Except for the cover plate, the side plate, the end plate and the bottom plate are inseparable. Length/Width Tolerance (±5%) Height tolerance (±5%), separated by a partition into separate units every 1 meter. |
| 2. The Gabion adopts the assembly method. The cover plate, the side plate, the end plate and the bottom plate are separately assembled and assembled into a cage. Each part is bundled with spiral steel wire, and all the side wires of the cage are made of thick wire to strengthen the strength of the Gabion. |
| Place of Origin: | China (Mainland) | Brand Name: | Lighten Traffic |
|---|---|---|---|
|
LT--GG01 |
|
Galvanized Iron Wire, Low-Carbon Iron Wire |
| Type: | Gabion Box | Application: | Gabions |
| Hole Shape: | Hexagonal |
|
2.0-4.0mm |
|
Gabion Basket | Surface treatment: | Galvanized, PVC coated |
| Mesh opening: | 60*80mm 80*100mm 100*120mm | Certification: | ISO9001:2008 |
| Color: | Dark green, gray, Silver | Basket Size: | 2x1x1m, 3x1x0.5m, 4x1x1m |
| zinc coating: | 30-300g/Square Meter | Galfan Gabion: | Also Provide |
| Usage: | Protection |
|
Available |
|
L x W xH (m) |
Capacity(m3) |
|
1x1x1 |
|
|
2x1x1 |
11 |
|
3x1x1 |
16 |
|
4x1x1 |
21 |
|
1.5x1x1 |
8 |
|
2x1x0.5 |
7.5 |
|
3x4x0.5 |
35.5 |
|
Size(mm) |
|
|
60x80 |
|
|
80x100 |
|
|
100x120 |
|
|
110x150 |
|
|
220x240 |
|
Mesh Wire(mm) |
Selvedge Wire(mm) |
Binding Wire(mm) |
|
2.0 |
2.4 |
2.2 |
|
2.2 |
2.7 |
2.2 |
|
2.4 |
3.0 |
2.2 |
|
2.7 |
3.4 |
2.2 |
|
2.75 |
3.4 |
2.2 |
|
3.0 |
3.9 |
2.2 |
|
3.4 |
4.4 |
2.2 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
